Chinese Congregational Church

The Brief

The Chinese Congregational Church opened its brand new facilities in Padstow, NSW at the end of 2015. To ensure the building was compliant and all members of the congregation were able to access the upper levels of the facility, a vertical wheelchair platform lift was required.

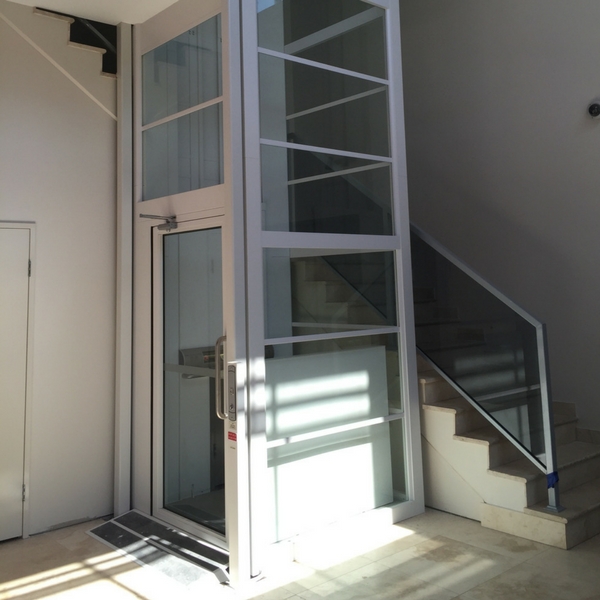

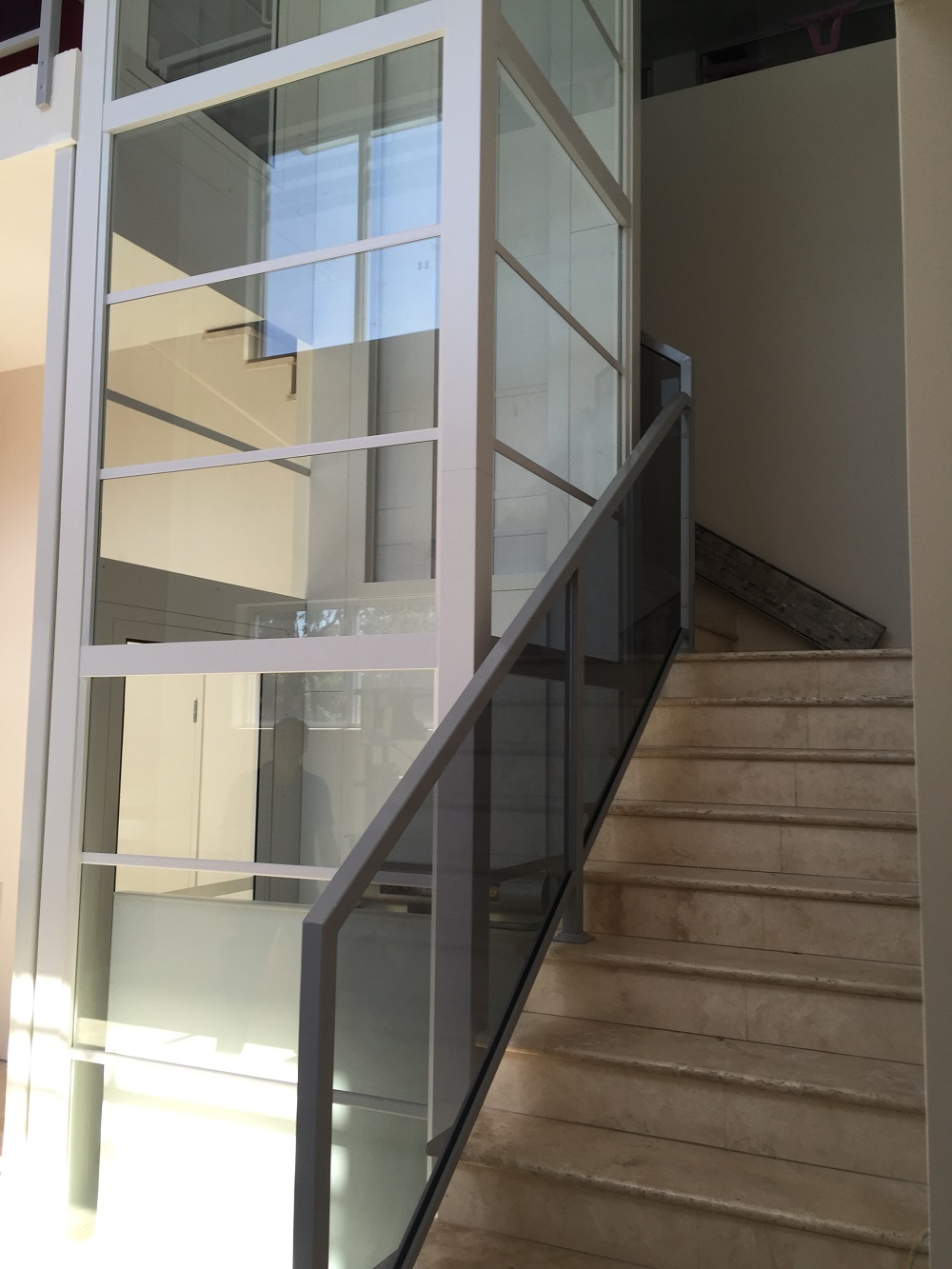

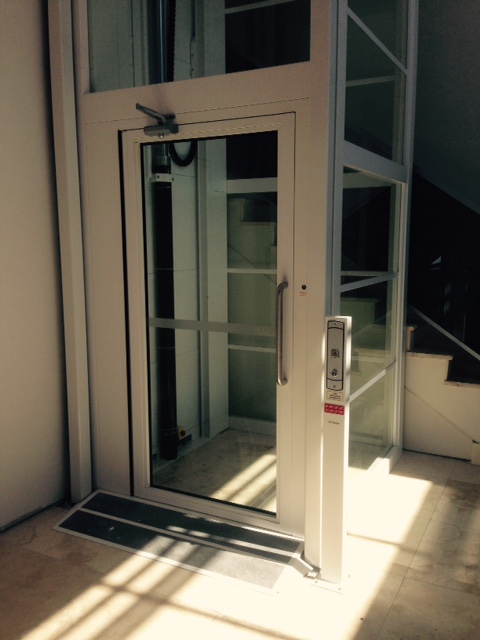

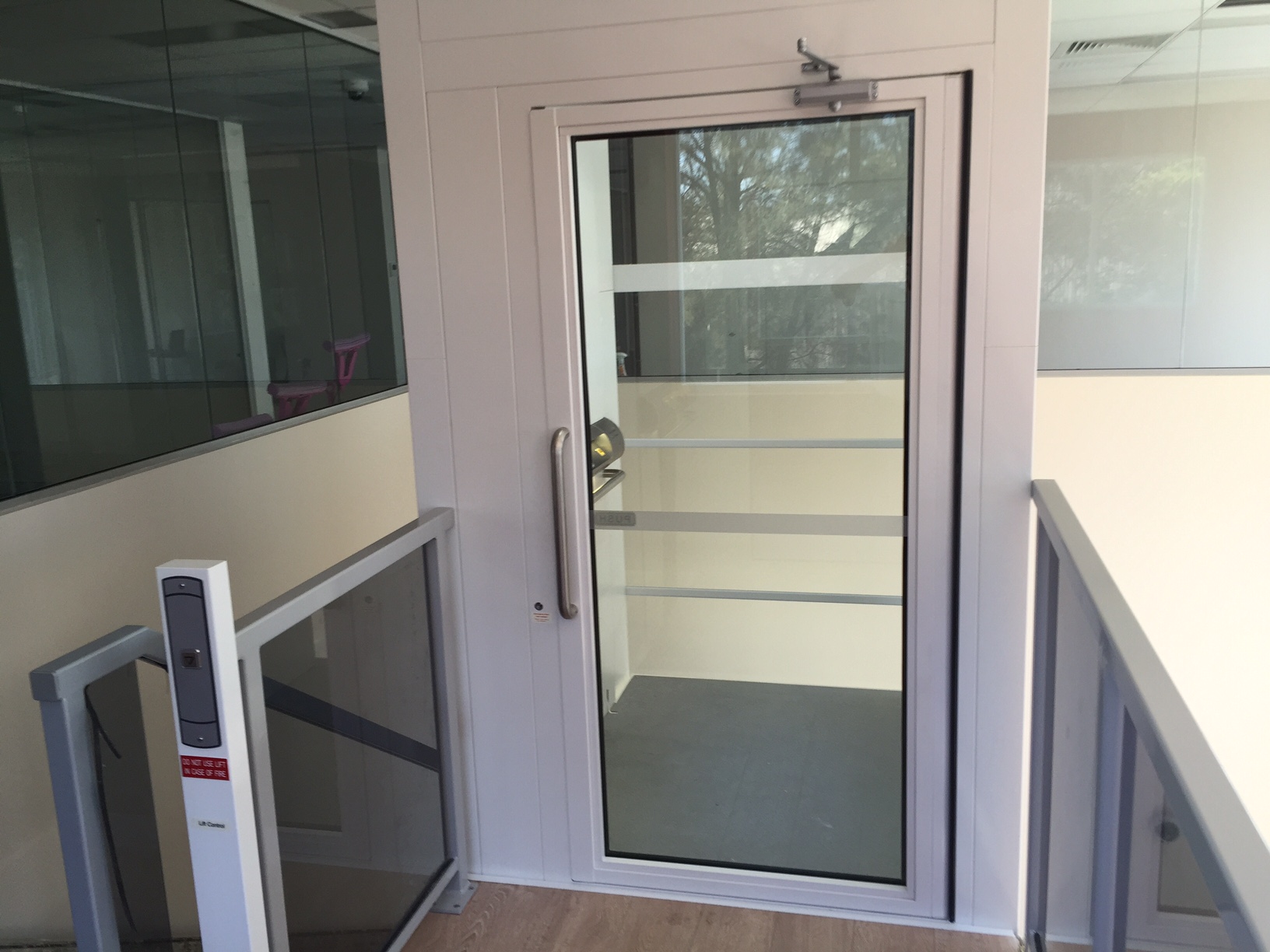

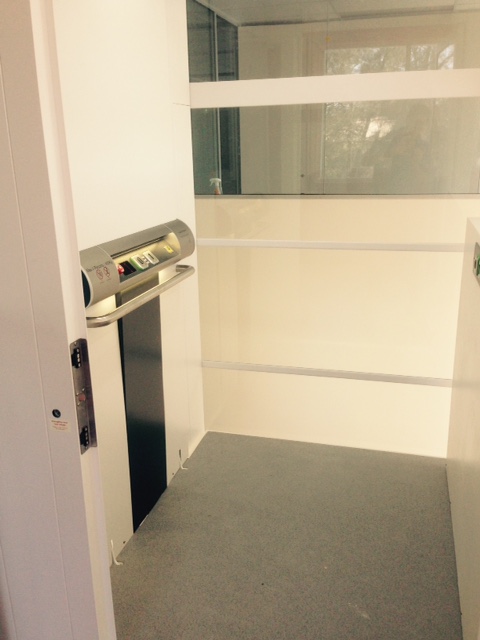

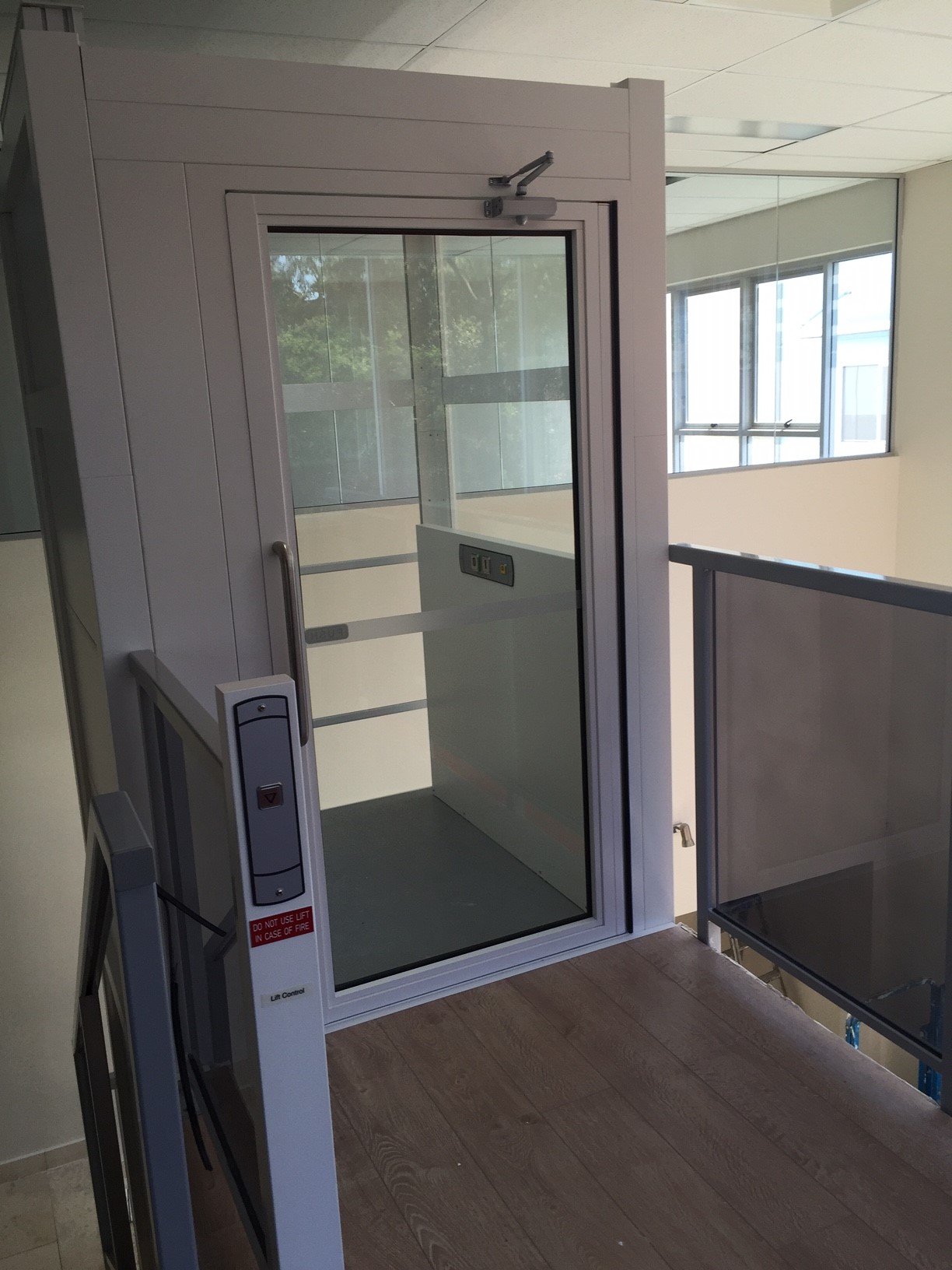

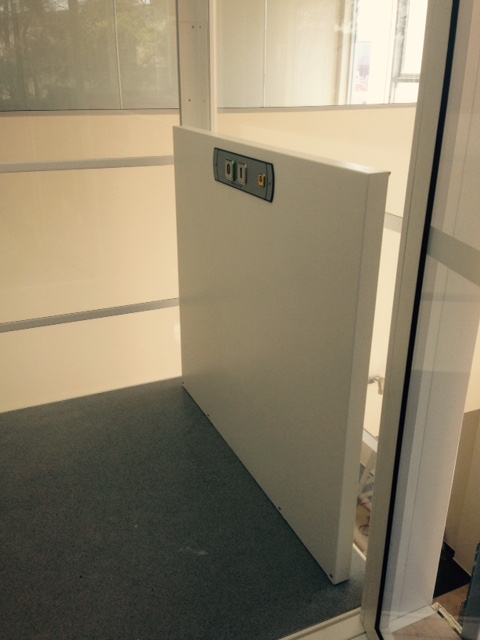

Our team installed a dual-control SL wheelchair platform lift, providing access to a height of almost 4 metres. The lift is fully compliant to AS1735 Part 15 and satisfies BCA accessibility requirements.

The Specifics

Lift Type: SL Vertical Platform Lift

Capacity: 400kg

Travel Distance: ~4 metres

Stops: Two stops

Platform Size: 1125mm wide x 1400mm long

Finish: Powder-coated white steel frame with safety glass panels on all walls except the load bearing wall.

See More Case Studies >
