    Inclinator™ Lifts,

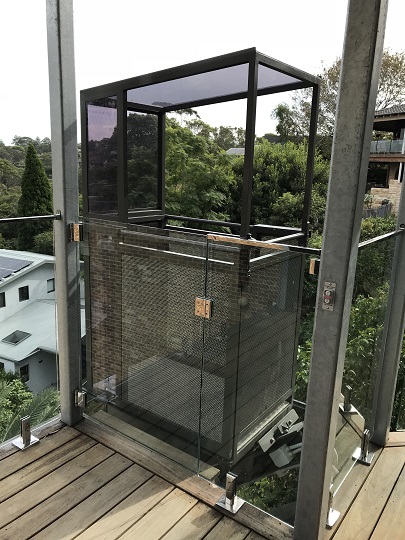

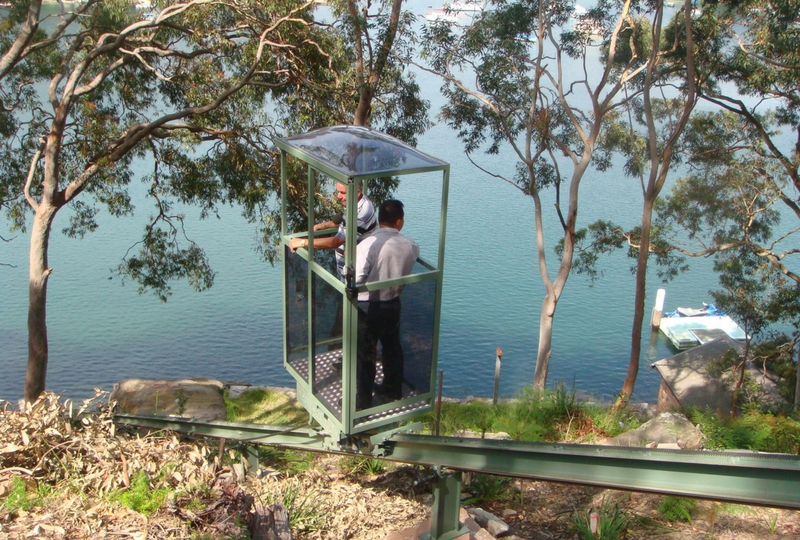

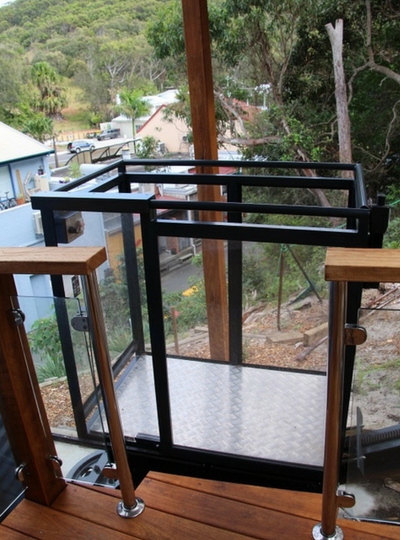

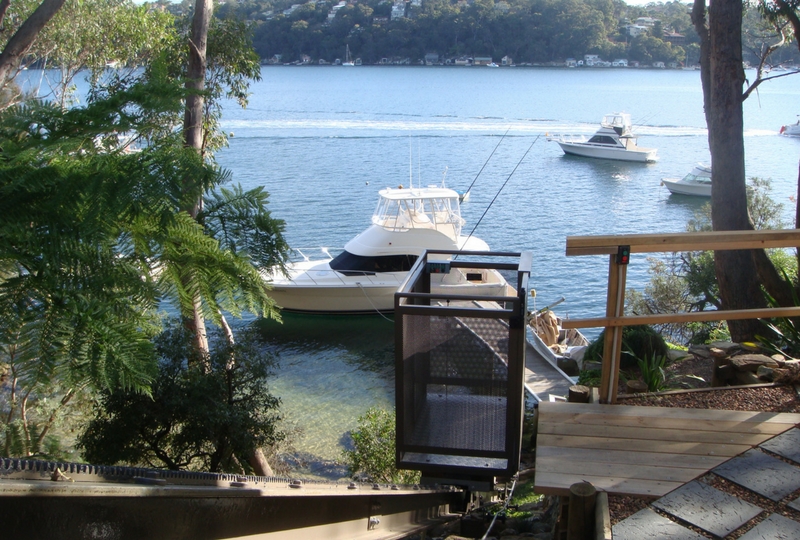

    Single Rail Inclinator™

    Available in both 2-person and 4-person models, the Single Rail Inclinator™ is ideal for residential sites and can provide access for distances up to and including 120 metres up to 45 degrees in inclination.

    Advantages

    Easier, safer substitute for steep stairs

    The Inclinator™ was specifically engineered to assist people living on steep or uneven blocks, and help people travel up and down stairs on inclined blocks.

    Custom built

    The Inclinator™ is custom-made in our factory to suit your specific site, while the Inclinator car features and finishes can be fully customised to your needs.

    Australian Made

    All of our Inclinators are designed and manufactured in Australia by P. R. King & Sons.

    Durability

    Concrete foundations and treated steel rails ensure strength and longevity.

    Suitable for most spaces

    Ideal for single and multi-storey homes, and residential units.

    Save carrying loads

    When gardening or building on a terraced site, the Inclinator™ will prove to be an ideal “workhorse”. Materials, gardening tools or soil can be easily moved – even the basic “Inclinator” has 272 kg carrying capacity. If you plan to build on a steep site, ask your architect for an estimate of what you can save in material handling costs by installing an Inclinator™.

    Smooth, easy operation

    Push button controls from each landing and in the car combined with a variable speed drive gives the Inclinator™ a smooth ride and easy operation. It can be stopped and reversed as desired and the empty car can be called or sent from one level to another.

    L
    o
    a
    d
    i
    n
    g

    Safety

    Fully compliant

    The Single-Rail Inclinator™  is built to Australian Standards AS1735 Part 8 for inclined lifts and is approved by all lift authorities in Australia.

    Safety features

    The Inclinator™ has been designed and built for reliability and safety. The car moves on wheels that run between the upper and lower flanges of the racked rail. The main drive gear is in constant mesh with this rack and there is absolutely no danger of the car sliding down the rail. A brake motor, an automatic overspeed governor and a combined safety gear fitted to the Inclinator™ make this impossible.

    Technical Specs

    • Up to 120m travel in a straight line
    • Speed 0.4 m/s
    • Rated load: 272kg
    • Max. passengers: 4
    • Max. angle: 45°
    • Gradient change: up to 8°
    • Platform size: 800mm x 1200mm
