Genesis Vertical
Advantages
Enclosed or shaft-way models

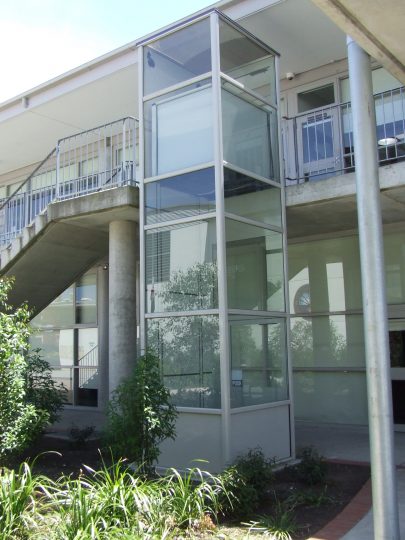

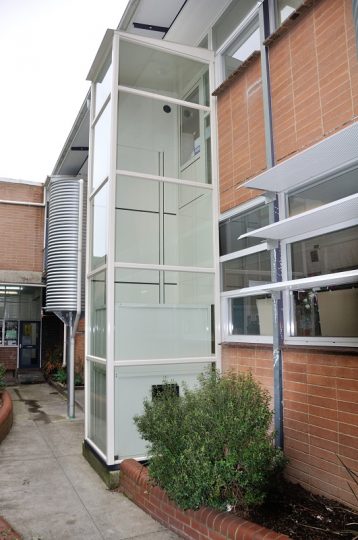

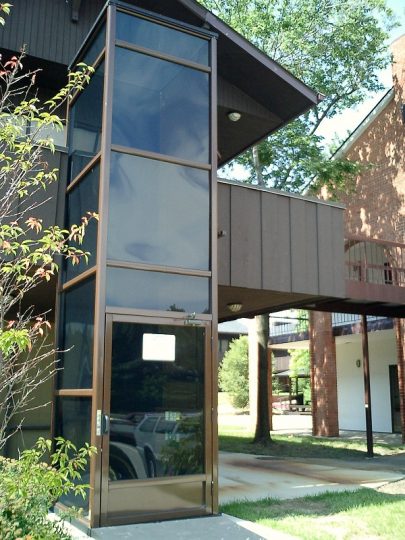

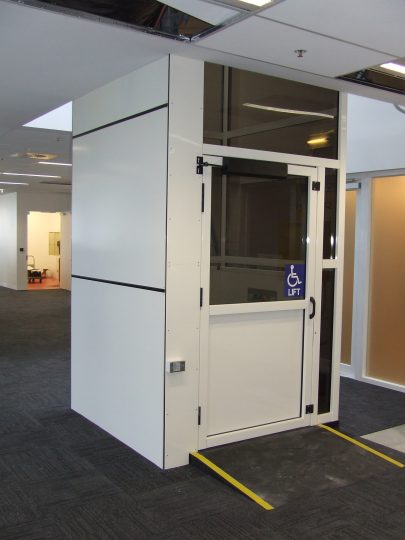

The Genesis enclosure model is a complete, self-contained vertical platform lift while the shaftway model fits inside a vertical shaft-way built by others.
Customisable configuration

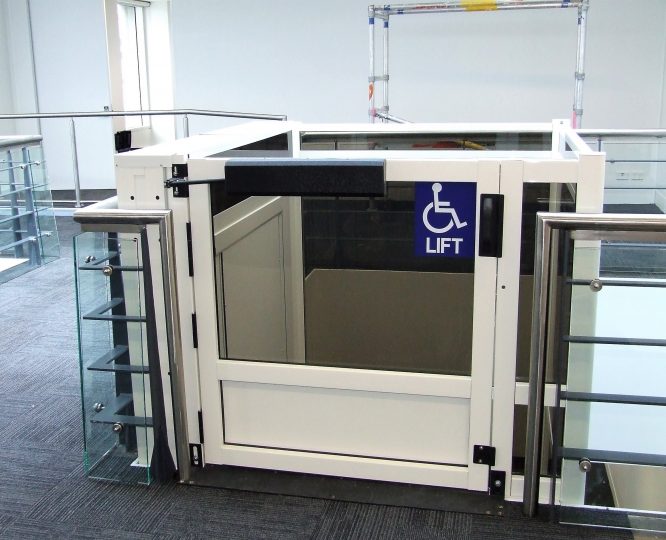

The shaft-way model can be completely enclosed, much like a lift shaft-way, or it can be open at the upper landing, and a variety of doors and gates are available. The enclosure model is similar to the shaft-way model except it includes its own prefabricated enclosure and integrated doors or gates. The enclosure can be built full height and fitted with a plexiglass dome for weather protection, or can be left open at the top.
Customisable features
The Genesis can be customised with a variety of optional features to suit the needs of the user and building owner. The wall panels, doors and gates can be designed from an extensive variety of colours and finishes.
Safety
- BCA compliant
- A manual emergency lowering system means the lift can be manually lowered in the event of a power failure.
- Emergency stop switch
- Door interlocks activate by the movement of the platform, the lock is monitored by the safety circuit to ensure the door or gate is properly locked.
Technical Specs
- Up to 4m travel
- Speed 0.08 m/s
- Rated load: 340kg
- Chained hydraulic drive
- Internal and external applications
- BCA compliant
