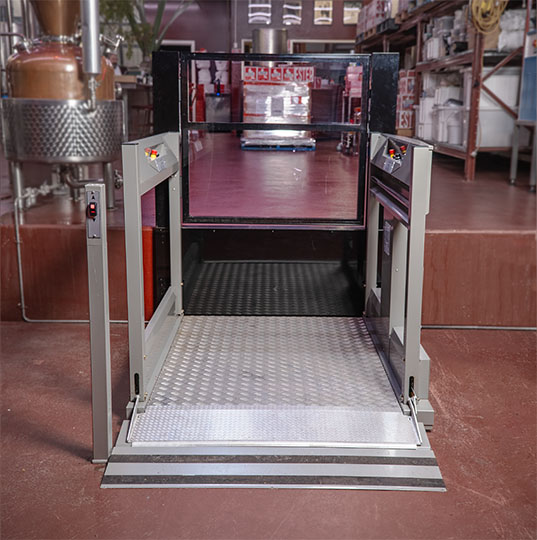

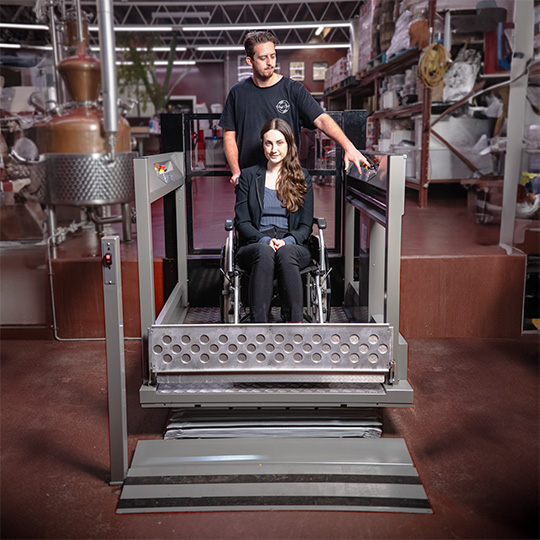

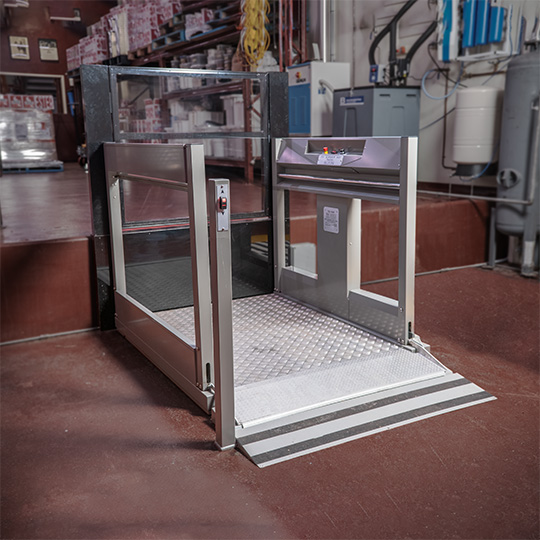

TSL 1100W

Suitable for commercial and residential use, this BCA-compliant step lift provides wheelchair access up to 1 metre.

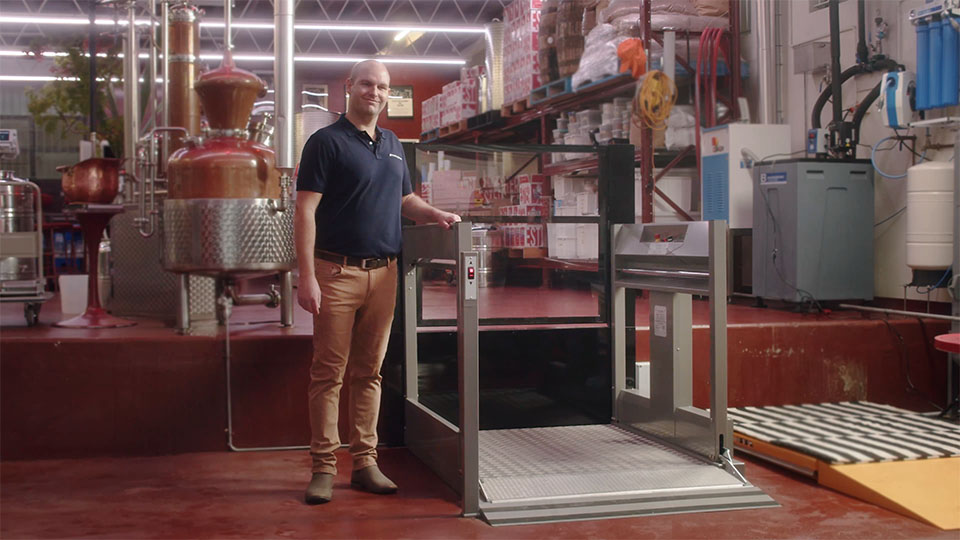

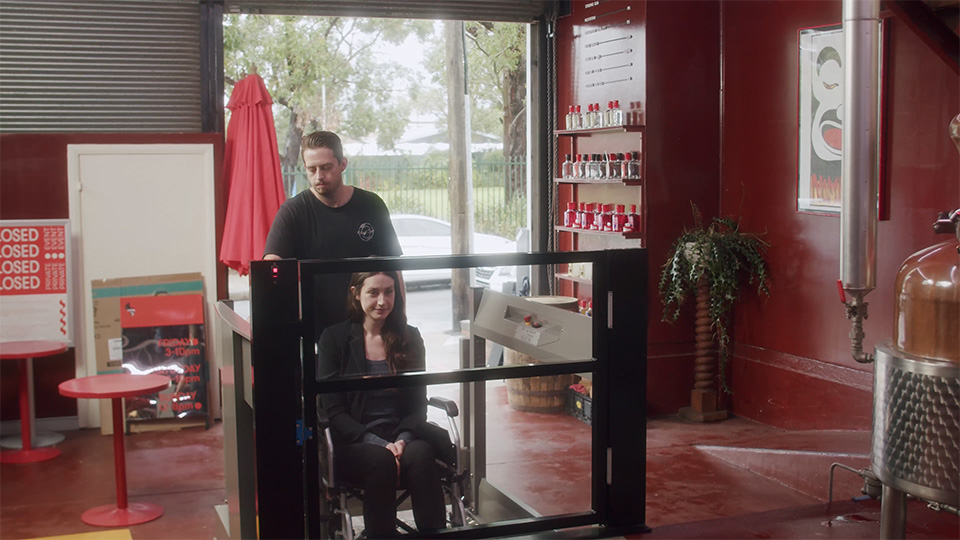

Watch the video on the Terry TSL1100W platform lift installed in the function space of Ester Spirits in Sydney.

Advantages

Short Lead Times

The TSL 1100W is generally kept in stock so lead times are often minimal. Please advise the team if you are on a tight deadline.

Easy installation

The self-contained unit can be installed in a day or two.

Suitable for large, heavy wheelchairs

The TSL 1100w features an extra wide platform and a large capacity of 385 kg, making it the ideal solution for heavy motorised wheelchairs.

Easy-to-use design

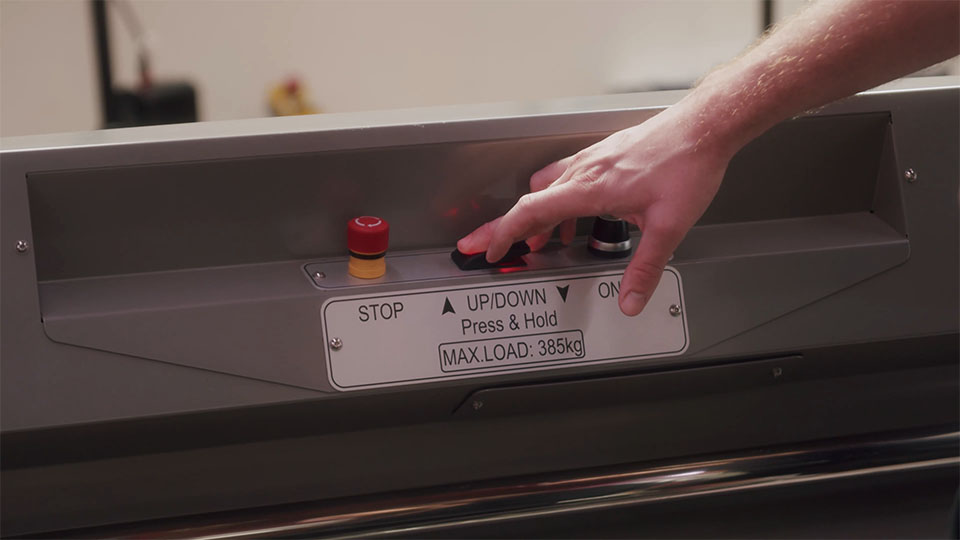

Simple, intuitive controls and a shallow approach ramp allow users to independently use with ease.

Cost-effective

Often cheaper than installing a ramp and can be easily relocated if ever necessary. As no pit is required reduces building costs.

Expertly engineered

Built in the UK to BS6440 by Terry Lifts, a highly-esteemed company with more than 30 years’ experience in mobility and access products.

Safety

BCA compliant

Arrestor mechanism incorporated into ramp.

Full platform safe edge as standard

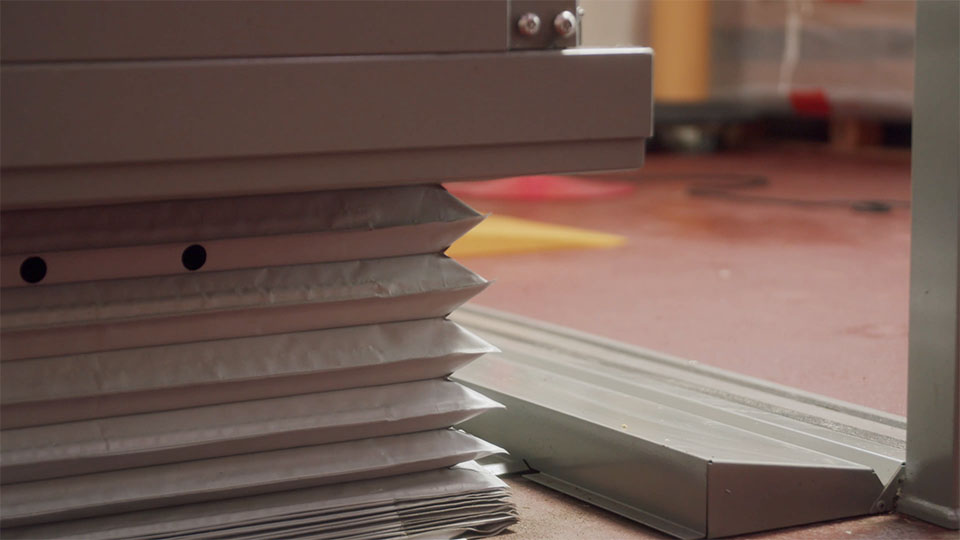

Scissor mechanism fully enclosed by bellows.

Battery backup

A battery back-up allows normal operation (up to 30 cycles) in case of power failure.

Technical Specs

  • Up to 1m travel
  • Speed: 0.05 m/s
  • Nominal load: 385kg
  • Closed height: 75mm
  • Bellows enclosed hydraulic scissor mechanism
  • Internal and external applications





Is the TSL 1000W not quite right for your needs?
View our full range of Platform lifts here
or contact us today.
